This product has been discontinued and removed from our shelves.

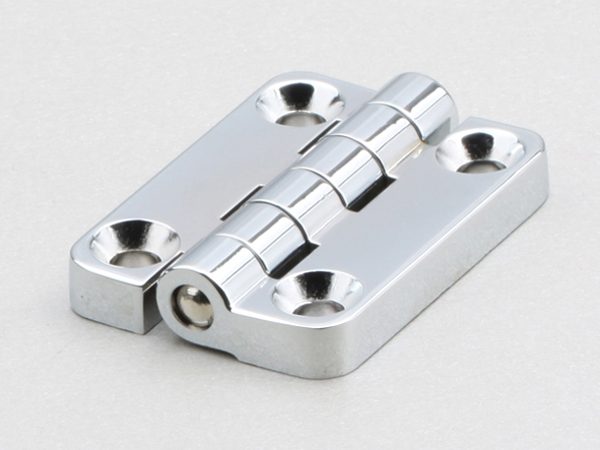

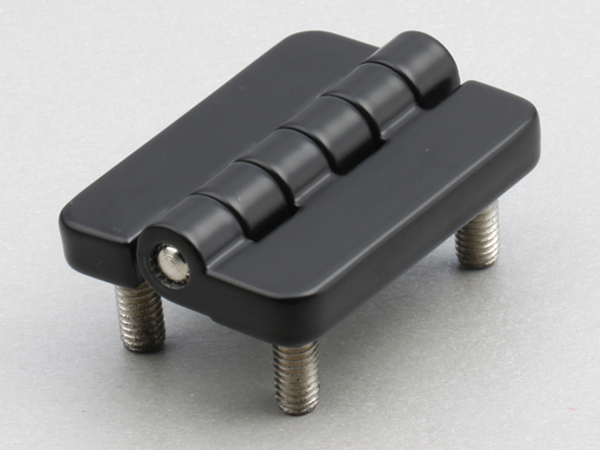

The CL209 butterfly hinge is made in different specifications and it has several types including the CL209-1 type, CL209-2 type and CL209-1C type. Therein, the CL209-1 type and CL209-2 type are equipped with the zinc hinge and steel pin. Yet the CL209-1C type adopts the nanometer painted ZDC hinge, steel pin and screw. Our product allows the opening angle as large as 180 degree.

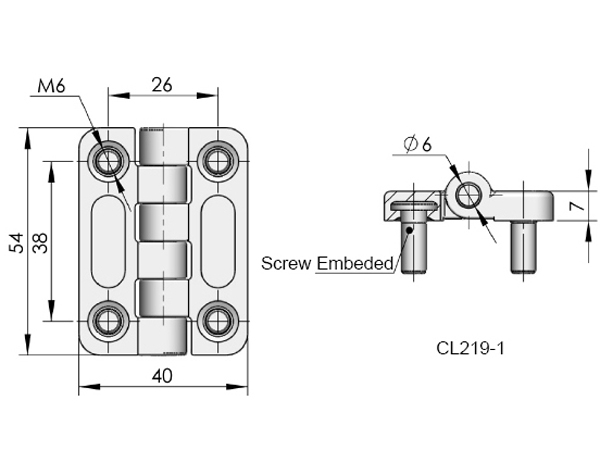

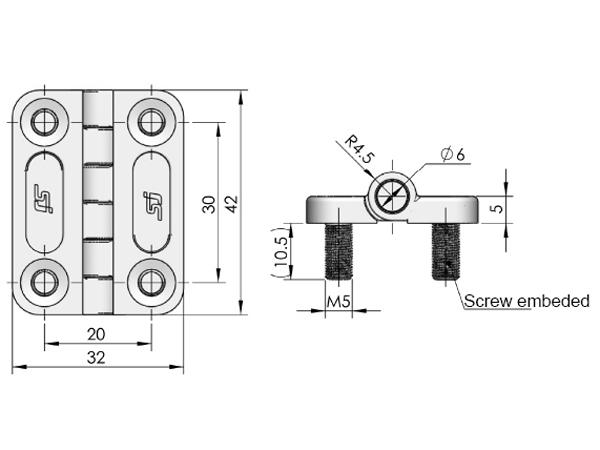

Technical Specifications of CL209-1 and CL209-2| Specification | ERP | |
| CL219-1 Screw Embedded | CL219-2 Countersunk | |
| Bright chrome-plated | CL209Z3A001 | CL209Z3A002 |
| Matt black powder coated | CL209Z1A001 | CL209Z1A015 |
| Pocked black powder coated | CL209Z1B001 | CL209Z1B002 |
| Nanometer painted | CL209Z2B001 | CL209Z2B006 |
| Model | ERP |
| CL209-1C | CL209Z2B004 |
