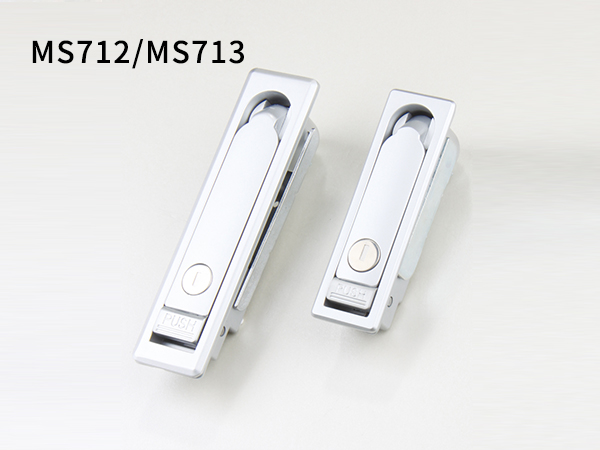

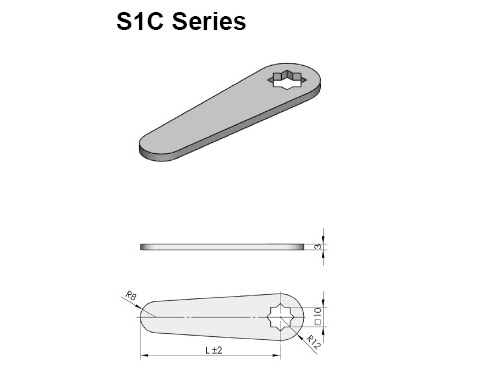

The swing handle cabinet lock is configured with the nanometer painted ZDC housing and handle, ZDC insert, white zinc coated steel support and cam. The product can be installed with different cams to realize one point locking or three-point locking, although the default cam is S1C72Y00002. This product supports quick opening and simple installation.

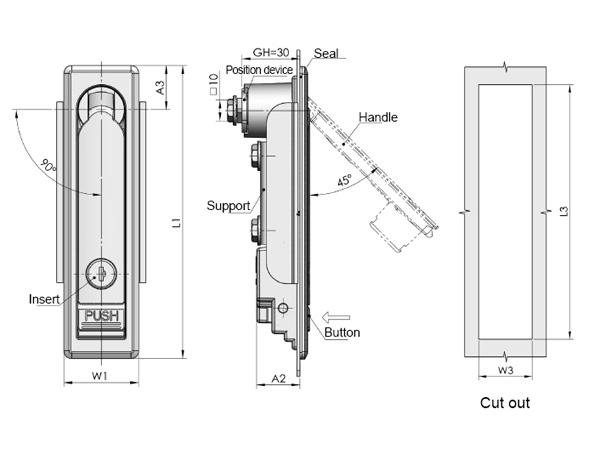

Technical Specifications| Model | ERP | L1 | L3 | W1 | W3 | GH | A1 | A3 | Cam | Default Key |
| MS712 | MS712Z2B040024 | 149 | 139.5 | 38 | 29.5 | 30 | 22 | 22.5 | S1C7200 | K040 |
| MS712-2A | MS712Z2B110017 | 132 | 124 | 33.5 | 27.5 | 30 | 22 | 17 | S1C7200 | K110 |
| MS712-3A | MS712Z2B110018 | 92 | 84 | 33.5 | 27.5 | 30 | 22 | 17 | S1C7200 | K110 |
| MS713 | MS713Z2B090046 | 110 | 102 | 33.5 | 27 | 30 | 22 | 17 | S1C6200 | K090 |
Remarks: Change the fitting position or angle of positioning device and cam to realize LH or RH application.
