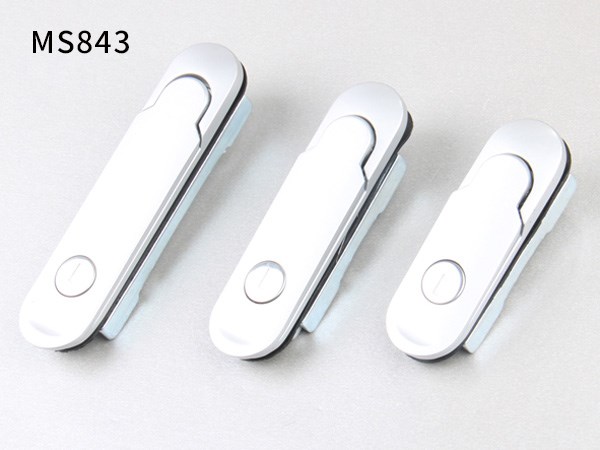

MS843 Swing Handle Cabinet Lock

Home » Products » Swing Handle Cabinet Lock » MS843 Swing Handle Cabinet Lock
inquiry form

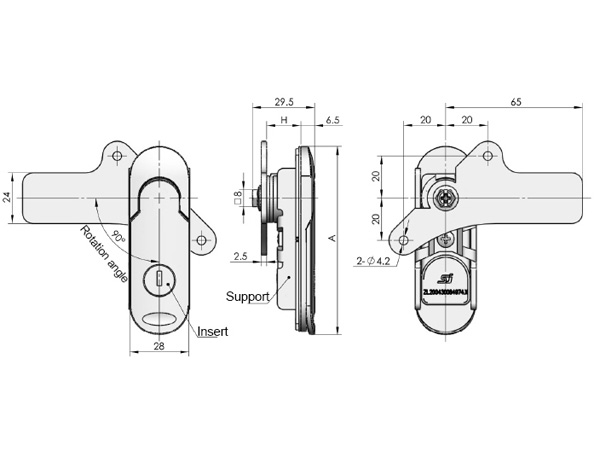

Technical Specifications
Specification Model ERP Model ERP
A=89 B=63 MS843-1 MS843Z2B080013 MS843-1A MS843Z2B000011
A=107 B=80 MS843-2 MS843Z2B080016 MS843-2A MS843Z2B000012
A=123 B=96 MS843-3 MS843Z2B080020 MS843-3A MS843Z2B000005
Main Material and Finish Nanometer painted ZDC handle and housing, white zinc plated steel support and cam
Application Open the handle upward, quarter turn rotation opening
Default Key K080

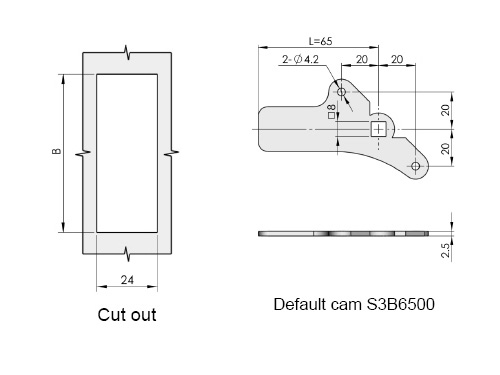

Default Cam S3B65Y00002
Remarks: ERP excludes cam.

Remarks: Change the fitting position of the position device and cam to adjust the stop height, change the fitting direction to realize RH or LH application.

Related Names
Curved Edge Cabinet Lock | Industrial Cabinet Locking Item | Safe Cabinet Hardware
