CL225-1/-2/-1A/-3 Bolt Hinge

Home » Products » Hinge » Bolt Hinge » CL225-1/-2/-1A/-3 Bolt Hinge
inquiry form

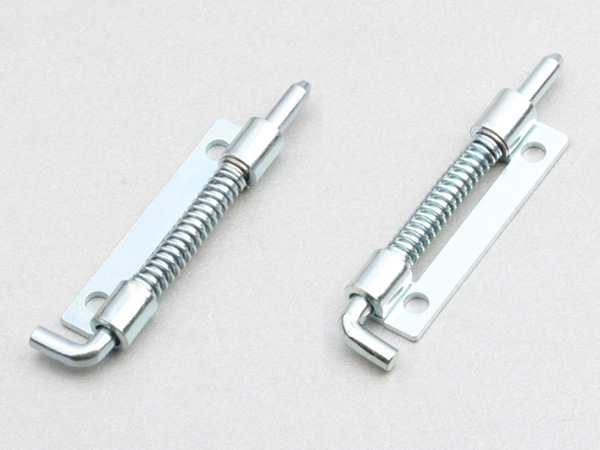

This CL225-1, CL225-1A, CL225-2 or CL225-3 bolt hinge is equipped with the steel hinge leaf that is coated with white zinc.

Remarks: Accessory (optional). This accessory is used as an alternative to the hinge with pin, usually fitted at the bottom of the door as load-bearing fixing door.

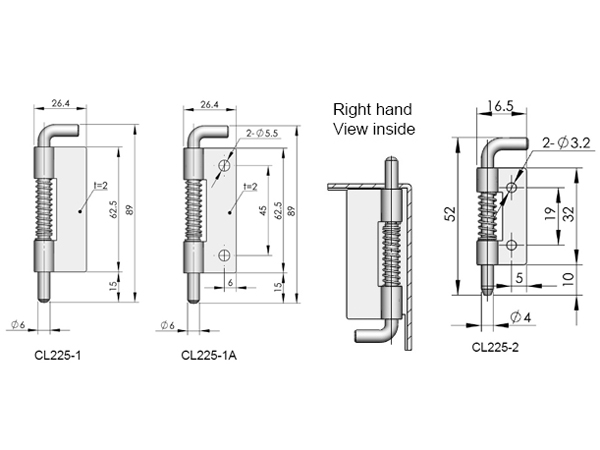

Technical Specifications of CL225-1/CL225-1A/CL225-2
Model Left Hand Right Hand
Model ERP Model ERP
CL225-1 CL225-1-Z CL225F3D001 CL225-1-Y CL225F3D004
CL225-1A CL225-1A-Z CL225F3D008 CL225-1A-Y CL225F3D007
CL225-2 CL225-2-Z CL225F3D011 CL225-2-Y CL225F3D012

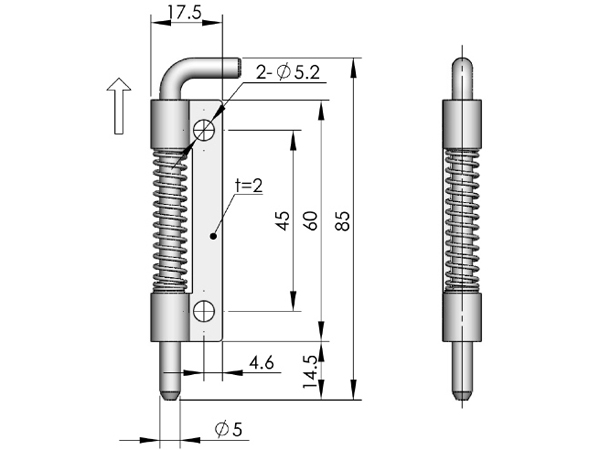

Technical Specifications of CL225-3
Specification Model ERP
Left Hand CL225-3-Z CL225F3D022
Right Hand CL225-3-Y CL225F3D019

Related Names
Galvanized Steel Parts | Communication Cabinet Bolt Hinge | Power Cabinet Sheet Connection Accessories
