MS816-1 Cylinder Cabinet Lock

Home » Products » Cylinder Cabinet Lock » MS816-1 Cylinder Cabinet Lock
inquiry form

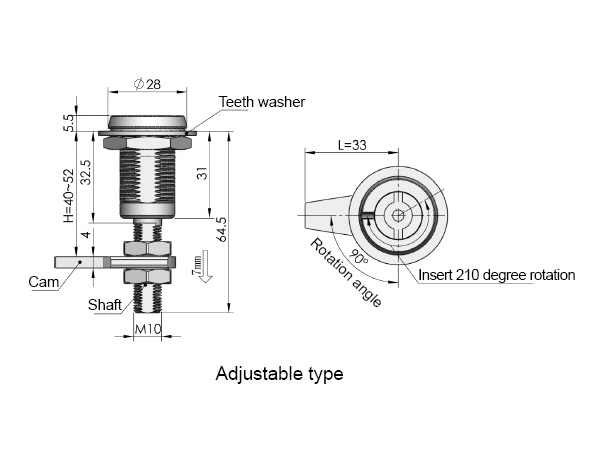

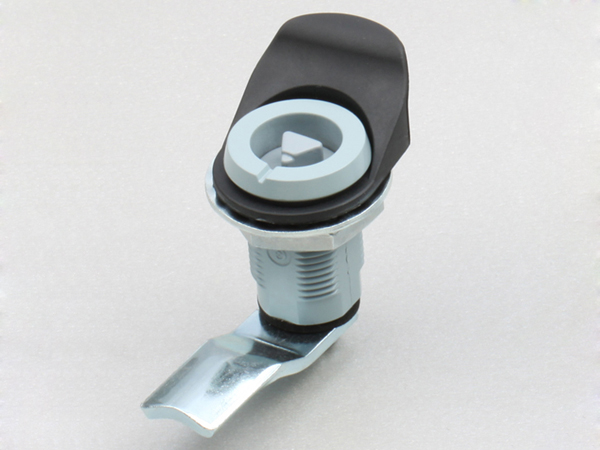

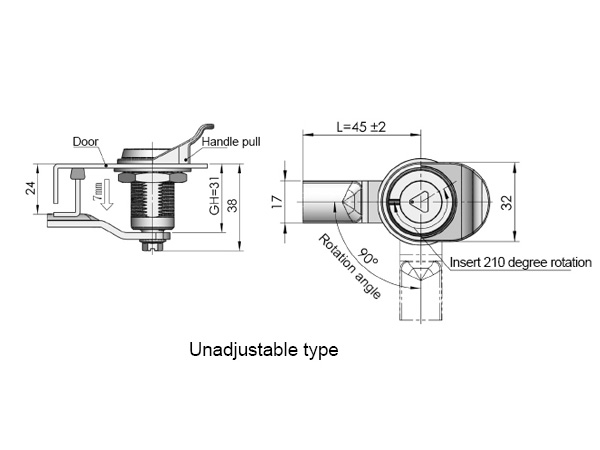

The MS816-1 cylinder cabinet lock is equipped with the blue gray powder coated ZDC housing and insert, white zinc-plated steel cam, as well as PA handle pull. The product can be opened or closed through rotating the cam in right angle. With the K15 series of keys for selection, the product is configured with the S1B45N07005 default cam for the unadjustable type. The adjustable type chooses the S1M33Y00002 default cam, whose tensile strength is 4.

Technical Specification
Specification Unadjustable Type Adjustable Type
Model ERP Model ERP
8mm Triangle MS816-1-1 MS816Z1DT04009 MS816-1A-1 MS816Z1DT04015
S Hook MS816-1-2 MS816Z1DT03007 MS816-1A-2 MS816Z1DT03010
8mm Socket hexagon MS816-1-3 MS816Z1DT24004 MS816-1A-3 MS816Z1DT24005
10mm Hexagon MS816-1-4 MS816Z1DT25001 MS816-1A-4 MS816Z2AT25001
8mm Square MS816-1-5 MS816Z1DT07001 MS816-1A-5 MS816Z1DT07003
7mm Square MS816-1-6 MS816Z1DT06001 MS816-1A-6 MS816Z1DT06003
9mm Square MS816-1-8 MS816Z1DT26001 MS816-1A-8 MS816Z1DT26003
Slot MS816-1-9 MS816Z1DT10001 MS816-1A-9 MS816Z1DT10003
7mm Triangle MS816-1-10 MS816Z1DT14002 MS816-1A-10 MS816Z1DT14003
Abnormal MS816-1-12 MS816Z1DT21001 MS816-1A-12 MS816Z1DT21004

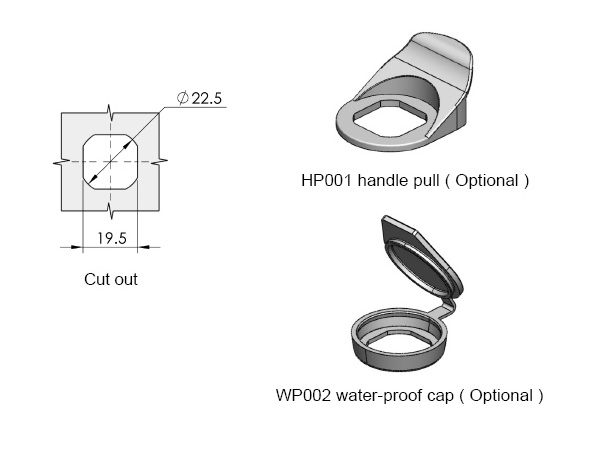

Remarks: ERP excludes cam (cut out square 8mm).
